Application：

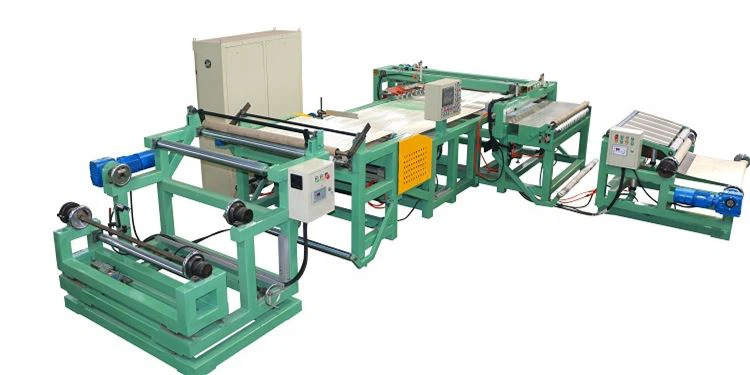

The equipment is used for short fiber cutting and splicing with 90°and make a roll.
Equipment structure：
1）Put cloth and cloth storage device: use frequency conversion control three-phase motor with reducer realize the storage and release of rubber sheet.
2）Cutting device: use the rodless cylinder to drive the cutter motor to cut the rubber sheet
3）Transmission device: use variable frequency speed regulation system control conveyor belt delivery location of rubber sheet.
4）Splicing device: use rodless cylinder drives the spelling tool device for the rubber sheet splicing
5）Mechanical arm device: Use servo motor control splicing the width of the rubber sheet, made up of small cylinder scraping device for the rubber sheet.
6）Collect cloth device：use frequency conversion control of three-phase motor and reducer for the Joining finished rubber sheet to winding.
